4th Axis Headstock

Cue Maker Supply

$299.95
(No reviews yet) Write a Review
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Description

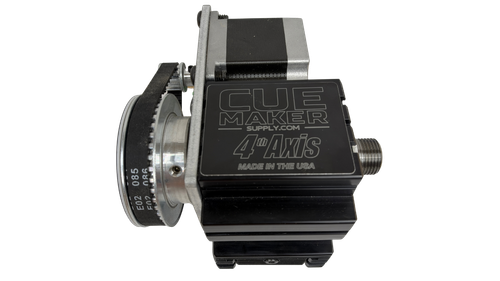

The Cue Maker Supply CNC 4th Axis Headstock Assembly adds rotary capability to your CNC machine with a 4:1 timing belt reduction and a standard NEMA 23 stepper motor. Compatible with our Basic Series 3-jaw and 4-jaw chuck options, it provides flexible workholding for cue making and other rotary projects.

Chuck sold separately.

Built around the same dovetail system as our lathes, this assembly can be mounted on a separately sold 4-foot dovetail bed and used with our standard tailstocks. Mount and align the bed on your CNC machine, secure the headstock in place, and slide the tailstock along the bed to accommodate projects ranging from shafts to extensions and short jump handles.

Compatible accessories from our lathe lineup—including spur drives, dead centers, and live centers—provide additional workholding options.

A 6-inch flying lead with a 4-pin Phoenix connector connects to our SpinDrive and Spindexer controller cables, as well as our pre-made cables for integration with other CNC control systems. Use the SpinDrive for standalone spinning, the Spindexer for standalone spinning and indexing, or our separately sold Gecko G540 cable for direct connection to your CNC controller.

Key Features

  • 4:1 timing belt reduction — belt-driven rotary motion

  • NEMA 23 stepper motor included — powers the rotary assembly

  • Basic Series chuck compatibility — accepts our Basic Series 3-jaw and 4-jaw chuck options; chuck sold separately

  • Standard dovetail mounting — uses the same dovetail system as our cue lathes

  • Adjustable project length — use with a 4-foot dovetail bed and standard tailstock to accommodate different workpiece lengths while maintaining alignment

  • Compatible workholding accessories — accepts compatible spur drives, dead centers, and live centers from our lathe lineup

  • 6-inch flying lead with 4-pin Phoenix connector — compatible with our SpinDrive and Spindexer controller cables and our pre-made CNC integration cables

  • Standalone control options — choose SpinDrive for spinning or Spindexer for spinning and indexing

  • Gecko G540 connection option — integrate with your CNC controller using our separately sold cable

  • One-year warranty on the stepper motor — covers the included NEMA 23 stepper motor.

Recommended Add-Ons

  • Basic Series 3-Jaw or 4-Jaw Chuck — choose the workholding option for your application

  • 4-Foot Dovetail Bed — provides a shared mounting platform for the headstock and tailstock; sold separately

  • Standard Tailstock — supports the opposite end of your workpiece

  • Spindexer Touchscreen Controller — standalone spin and indexing control

  • SpinDrive Rotary Speed Controller — standalone spin-only control

  • Gecko G540 Connection Cable — connects the assembly to a Gecko G540 CNC controller

Ideal For

  • CNC shaft work and cue components

  • Cue extensions and short jump handles

  • Rotary indexing with a suitable controller

  • Projects requiring adjustable tailstock positioning

One-year warranty on the stepper motor — covers the included NEMA 23 stepper motor.
!
